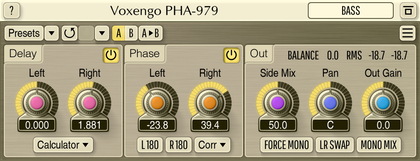

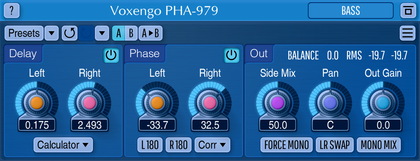

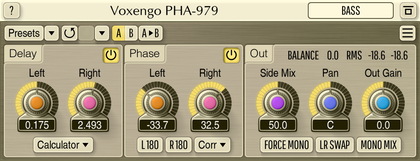

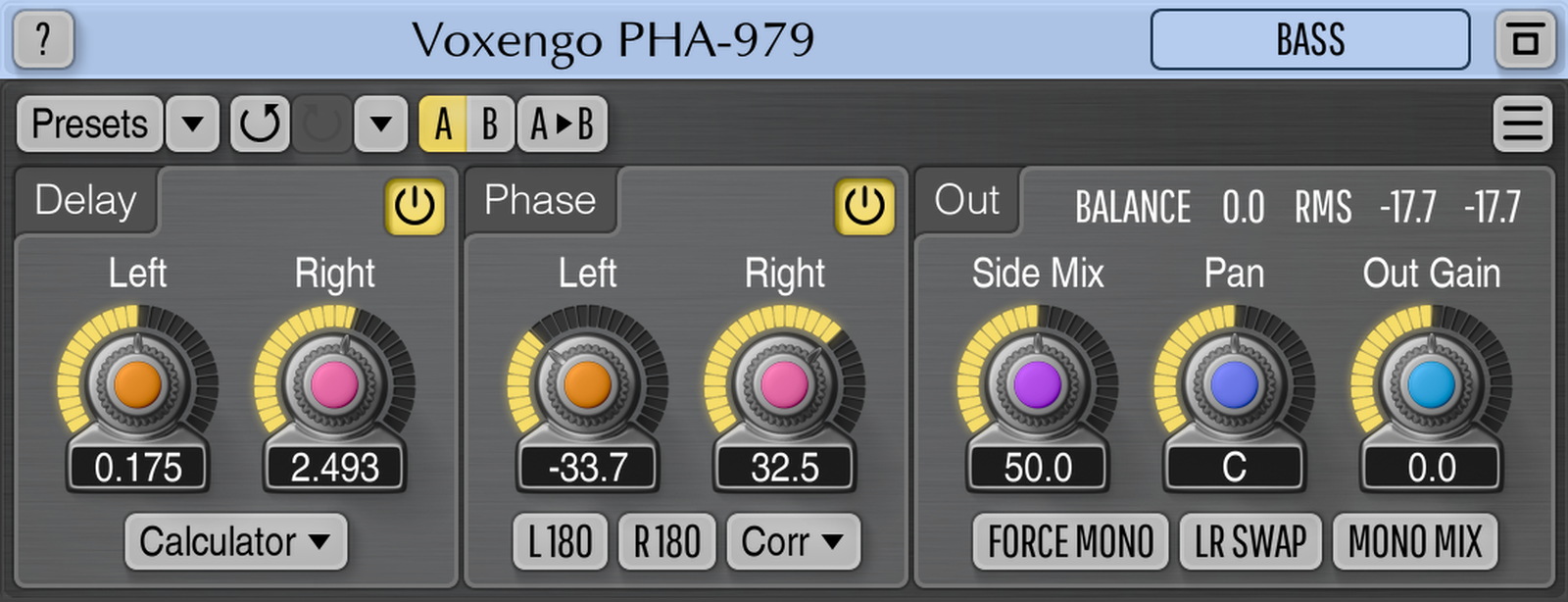

Voxengo PHA-979

PHA-979 is a professional audio plug-in which allows you to apply an arbitrary phase shift to sound material.  What is meant by the phase shift here is simultaneous shifting of all frequencies across the active frequency range of the signal by the given value in degrees.  This is achieved by linear-phase design.

PHA-979 can be very useful during mixing sessions, especially when working with the sound material recorded through an array of microphones.  In many cases this allows you to solve various phasing problems arising from the microphone placement chosen during the tracking session.  In other cases this process may help you to align drums to each other and to align the bass to drums and other instruments bringing punch and time coherence not attainable by the ordinary time-aligning alone.

PHA-979 features a multi-band analog-style correlation meter that greatly simplifies phase- and time-aligning process.

Beside phase shifting PHA-979 features an ordinary positive and negative time delaying that eliminates the need to move in-track events in the sequencer when doing time alignment over any set of recorded tracks.

PHA-979 also provides mid/side channel balance and panning controls that permit you to record stereo microphone pairs into a single stereo track without resorting to dual mono recording (on separate tracks) which usually becomes time-consuming in a further editing.

Moreover, you can use functionality PHA-979 provides to setup headphone monitoring so that it closer resembles sound stage produced by stereo speaker monitoring.

Features

• Arbitrary signal phase control
• Linear-phase design
• Multi-band correlation meter
• Positive/negative time delaying
• Delay time calculator
• Mid/side channel balance control
• Stereo output panning
• Stereo and mono processing
• 64-bit floating point processing
• Preset manager
• Undo/redo history
• A/B comparisons
• Contextual hint messages

Compatibility

This plug-in can be loaded into any audio host application that conforms to the VST or AudioUnit plug-in specification.

This plug-in is compatible with Windows XP, Windows Vista (32- and 64-bit) and Mac OS X 10.4.11 and above (Intel and PowerPC) computers (2 GHz dual-core or faster processor with at least 1 GB of system RAM recommended).  A separate binary distribution file is available for each target computer platform for each plug-in format.

What's New

Version 2.1, 30-may-2009:

• Crash problem fixed with non-center panning setting.
• Delay and phase dimming problem fixed.
• Multi-band correlation meter implemented.
• Latency change reporting fixed in AudioUnits.

Version 2.0, 11-may-2009:
Initial version 2 release.

Changes in version 2 over version 1:

• Multi-platform support
• Mid/side balance control
• RMS signal level readouts
• Positive/negative time delaying
• Multi-band correlation meter
• Delay time calculator
• L/R channel swap function
• Undo/redo
• Preset manager
• User interface coloration
• User interface re-scaling
• Plug-in instance naming
• Bypass switch
