Voxengo SPAN Plus extended spectrum analyzer plugin released - Press Release

Discuss  Go to product's page

May 19, 2013: Voxengo is pleased to announce the release of SPAN Plus - an extended real-time “fast Fourier transform” audio spectrum analyzer plug-in for professional music and audio production applications.  For the most part it was derived from Voxengo GlissEQ dynamic parametric equalizer and reproduces its spectrum analysis functionality.  SPAN Plus is available in AudioUnit and VST plug-in formats (including native 64-bit support), for Mac OS X (v10.5 and later), and Windows computers.

SPAN Plus is an extended version of the freeware SPAN plug-in: SPAN Plus provides several additional features such as PNG file export, real-time spectrum import/export and static spectrums display.

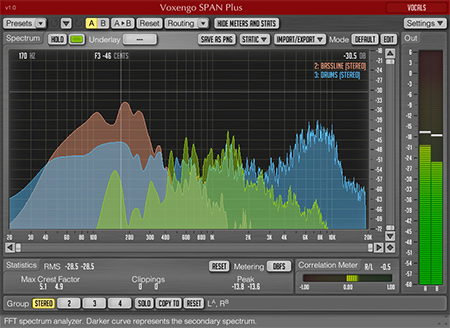

Voxengo SPAN Plus 1.0 Screenshot

SPAN Plus provides you with a very flexible “mode” system which you can use to setup your spectrum analyzer preferences.  You may specify Fourier block size in samples, FFT window overlap percentage, spectrum's visual slope.  Beside that you can choose to display secondary spectrum of a desired type (e.g. real-time maximum, all-time maximum).  Spectrum can be smoothed out visually for an easier examination.

SPAN Plus supports multi-channel analysis and can be set to display spectrums from two different channels or channel groups at the same time.  Spectrum's color can be chosen to taste.

SPAN Plus also features output level metering with adjustable ballistics and integration time, K-metering (including calibration K-metering).  SPAN Plus displays level metering statistics, headroom estimation and clipping detection.  Correlation metering is available as well.

SPAN Plus features:

  • Real-time spectrum import/export
  • PNG file export
  • Static spectrums display
  • Output signal power statistics
  • Spectrum smoothing
  • User interface window resizing
  • Clipping statistics
  • Correlation meter
  • K-metering
  • Stereo and multi-channel analysis
  • Mid/side analysis
  • Internal channel routing
  • Channel grouping
  • Preset manager
  • Undo/redo history
  • A/B comparisons
  • Contextual hint messages
  • All sample rates support

Introductory price of USD 39.95 will be effective for two weeks from now, which is 20% off the regular price of USD 49.95.  Demo version of SPAN Plus can be downloaded freely at the Voxengo web site: http://www.voxengo.com/product/spanplus/
